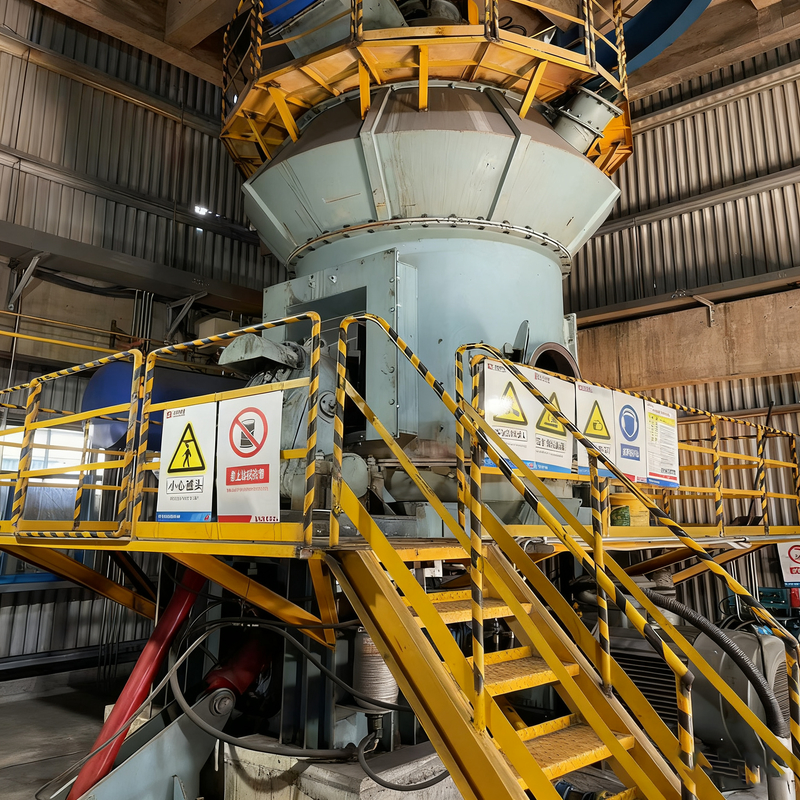

Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness

Name: Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: HVM1700 HVM1900 HVM2200 HVM2400 HVM2800 HVM3400 HVM3700 HVM4200
Availability: InStock

Rincian Produk

Tempat asal: CINA

Nama merek: Hengcheng

Sertifikasi: ISO Patent Certificate High-Tech Product Certificate

Nomor model: HVM1700 HVM1900 HVM2200 HVM2400 HVM2800 HVM3400 HVM3700 HVM4200

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 Set

Harga: Bisa dinegosiasikan

Kemasan rincian: Kemasan Pengiriman Standar

Waktu pengiriman: 120 hari

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 5 set/bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                industrial gypsum vertical mill, gypsum vertical roller mill, high capacity gypsum grinding mill


Nama Produk:	Pabrik Vertikal Gypsum	Efisiensi Penggilingan (kg/kWh):	25-30kg/kWh
Menyerahkan kehalusan:	200-325 mesh (rentang yang dapat disesuaikan)	Daya Motor Utama:	550 - 5000kW
Kadar Air Gipsum Mentah:	≤10%	Kadar Air Produk:	≤0,5%
Area Aplikasi:	Desulfurisasi, Metalurgi, Industri Kimia, Kekuasaan, Energi Baru	Instalasi:	Panduan Insinyur
Peringkat Daya (kW):	110-400kW	Bahan yang cocok:	Gipsum Alami、FGD Gipsum、Phosphogypsum、Citrogypsum

Nama Produk:	Pabrik Vertikal Gypsum
Efisiensi Penggilingan (kg/kWh):	25-30kg/kWh
Menyerahkan kehalusan:	200-325 mesh (rentang yang dapat disesuaikan)
Daya Motor Utama:	550 - 5000kW
Kadar Air Gipsum Mentah:	≤10%
Kadar Air Produk:	≤0,5%
Area Aplikasi:	Desulfurisasi, Metalurgi, Industri Kimia, Kekuasaan, Energi Baru
Instalasi:	Panduan Insinyur
Peringkat Daya (kW):	110-400kW
Bahan yang cocok:	Gipsum Alami、FGD Gipsum、Phosphogypsum、Citrogypsum

Industrial Gypsum Vertical Mill | Gypsum Vertical Roller Mill High Capacity & Superior Fineness

Product Overview

The gypsum vertical mill (often referred to as vertical roller mill) serves as the core equipment in modern gypsum powder production lines. It primarily processes lump gypsum—natural gypsum, desulfurized gypsum, and phosphogypsum included—into gypsum powder via rolling, grinding, and drying. The resulting powder is later used for manufacturing building gypsum, gypsum boards, and similar products.

Specifications And Technical Parameters Of HVM Gypsum Vertical Mill

Model	HVM2500	HVM2800	HVM3400	HVM3700	HVM4200	HVM4500	HVM4800	HVM5100	HVM5600
Grinding Table Median Diameter(mm)	2500	2800	3400	3700	4200	4500	4800	5100	5600
Capacity(t/h)	85-100	130-160	190-240	240-300	320-400	400-500	440-550	550-670	600-730
Raw Material Moisture	＜10%
Raw Meal Fineness	R0.08＜12%		R0.08＜14%
Raw Meal Moistrue	≤1%
Main Motor Power(kW)	800/900	1120/1250	1800/2000	2500/2800	3150/3350	3800/4200	4200/4500	5000/5400	5600/6000
Illustrate	Re:Raw materials bond index≤13kWh/t

I. Core Working Principle

The vertical mill integrates rolling, grinding, drying, and classifying into a single operation, with

the process detailed below: Feeding & Conveying: Post-crushing lump gypsum is fed into the mill by an air-lock feeder

and lands on the rotating grinding disc’s center. Rolling & Grinding: Motor-driven grinding disc rotates to move gypsum

materials. Hydraulic system applies pressure to press grinding rollers against the material layer, crushing materials between

rollers and disc. Hot Air Drying: Hot air (from hot air furnace or industrial waste heat) enters from the mill bottom, fully

contacting crushed materials to quickly dry out moisture. Classifying & Collecting: Hot air transports dried fine powder to

the top classifier. Qualified powder (finished product) is collected via a dust collector (e.g., bag filter); unqualified coarse

powder falls back for re-grinding.

II. Main Equipment Structure

A typical gypsum vertical mill mainly consists of the following components:

Grinding Disc: The core component that carries materials and rotates.

Grinding Rollers: Usually 2 to 4 in number, used for rolling and crushing materials.

Reducer: Reduces the motor speed and provides high torque for the grinding disc.

Classifier: Located at the top of the mill, it can be dynamic or static, and is used to control the fineness of the finished product.

Hydraulic System: Provides grinding pressure for the grinding rollers, and can automatically lift or lower the rollers for maintenance.

Motor: The power source of the equipment.

Machine Shell and Foundation: Supports and seals the entire system.

Get a Free Quote Now!

Tell us your production requirements (capacity, fineness, raw material type), and our engineers will provide a personalized solution within 24 hours.

Tel:+86 551-65176070

Email: margo@hfvrm.com

Website: www.verticalgrindingmills.com

"We transform gypsum into value—efficiently, stably, and sustainably."

Note: All parameters are subject to customization. Contact us for detailed technical drawings and case studies.
