Customizable Dense Phase Pneumatic Conveying Silo Pump - Powder Conveying System

Name: Customizable Dense Phase Pneumatic Conveying Silo Pump - Powder Conveying System
Brand: Hefei Hengcheng Industrial Equipment Technology Co., Ltd
SKU: PCD24/H PCD26/H PCD28/H PCD30/H
Availability: InStock

Rincian Produk

Tempat asal: China, Hefei

Nama merek: Hengcheng

Sertifikasi: ISO CE

Nomor model: PCD24/H PCD26/H PCD28/H PCD30/H

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: Bisa dinegosiasikan

Kemasan rincian: Kemasan pengiriman standar

Waktu pengiriman: 90 hari

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 5 set\bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:

Nama:	Pompa kapal pengangkut pneumatik fase padat	Jenis:	Sistem penyampaian bubuk tertutup
Barang Pengangkutan:	Bubuk	Kapasitas:	5-150 m³/jam
Aplikasi:	Power Plant Fly Ash, semen, bahan baku, bubuk mineral, dll	Transport medium:	powder
Aplikasi:	Pembangkit Listrik Fly Ash, Metalurgi, Pertambangan, Industri Kimia, dll	Tujuan:	Mengangkut bahan bubuk
Tekanan Kerja:	0,2-0,6 Mpa	Volume Silo:	1-50 m³

Nama:	Pompa kapal pengangkut pneumatik fase padat
Jenis:	Sistem penyampaian bubuk tertutup
Barang Pengangkutan:	Bubuk
Kapasitas:	5-150 m³/jam
Aplikasi:	Power Plant Fly Ash, semen, bahan baku, bubuk mineral, dll
Transport medium:	powder
Aplikasi:	Pembangkit Listrik Fly Ash, Metalurgi, Pertambangan, Industri Kimia, dll
Tujuan:	Mengangkut bahan bubuk
Tekanan Kerja:	0,2-0,6 Mpa
Volume Silo:	1-50 m³

Customizable Dense Phase Pneumatic Conveying Silo Pump - Powder Conveying System

Core Advantages

Energy saving and efficient

The conveying pressure is 0.3-0.6MPa, and the gas consumption is only one-third of that of the dilute phase system

Unique segmented boosting technology, suitable for long-distance transportation of over 500 meters

2. Wide adaptability of materials

Capable of handling particles with a diameter ≤ 50mm (such as slag, quartz sand)

⊙ Wear resistant alloy/ceramic lined pipes with a lifespan of over 10000 hours

3.Intelligent Control

PLC automatically adjusts pressure and flow rate to prevent pipe blockage and pulse phenomenon

Optional IoT remote monitoring, real-time feedback of transmitted data

Product Overview
The dense phase pneumatic conveying silo pump adopts the principle of high-pressure and low-speed conveying, and is specially designed for highly abrasive and fragile powder particles such as cement, fly ash, and chemical raw materials. Compared to dilute phase conveying, energy consumption is reduced by 30% -50%, material damage rate is less than 0.1%, achieving dust-free, low consumption, and high stability industrial grade conveying.

Our Dense Phase Pneumatic Conveying Vessel Pump is engineered for industries requiring gentle, high-capacity powder transfer with minimal air consumption and zero material degradation. Ideal for:

✔ Cement plants (cement, raw meal, fly ash)

✔ Power stations (fly ash, limestone powder)

✔ Mining & minerals (silica, alumina, bentonite)

✔ Food & pharma (sugar, starch, powdered additives)

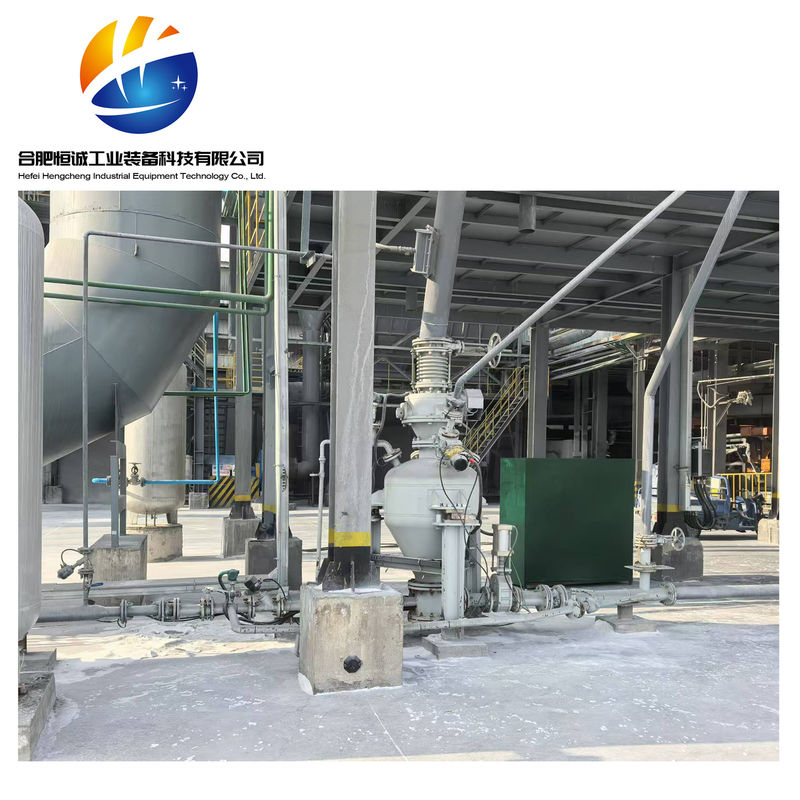

Customizable Dense Phase Pneumatic Conveying Silo Pump - Powder Conveying System 0
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m³)	Model	PCD24/H	PCD26/H	PCD28/H	PCD30/H	Conveying Distance
Conveying Material	Bulk Density (t/m³)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	50~80	60~90	65~110	80~130	200	20
Fly Ash	0.75		75~125	85~130	95~160	125~190	200	20
Limestone Powder/Mineral Powder	0.8		80~130	90~140	100~170	130~200	200	20
Cement/Raw Meal	1		100~150	115~175	130~215	165~260	200	20

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density (t/m3)	Model	PCD24/L	PCD26/L	PCD28/L	PCD30/L	Conveying Distance
Conveying Material	Bulk Density (t/m3)	Specification	16~20m3	18~22m3	20~27m3	26~32m3	Level (m)	Level (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	20~40	25~45	30~55	45~65	1000	25
Fly Ash	0.75		35~60	45~65	45~80	65~95	1000	25
Limestone Powder/Mineral Powder	0.8		40~65	45~70	50~85	70~100	1000	25
Cement/Raw Meal	1		50~80	55~90	65~110	90~120	1000	25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material	Bulk Density(t/m³)	Model	PCD18/N	PCD20/N	PCD20/N	Reference Conveying Distance
Conveying Material	Bulk Density(t/m³)	Specification	5.0~6.7m³	7.0~10.0m³	10.0~15.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	12~20	16~32	25~50	500	30
Fly Ash	0.75		18~32	25~48	35~70	50
Limestone Powder/Mineral Powder	0.8		20~35	26~51	38~75	500	30
Cement/Raw Meal	1.0		24~42	32~65	48~95	500	30
Silicon Powder	1.2		28~50	40~75	55~115	500	30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material	Bulk Density(t/m³)	Model	PCD08/M	PCD10/M	PCD12/M	PCD14/M	Reference Conveying Distance
Material	Bulk Density(t/m³)	Specification	0.2~0.5m³	0.6~1.6m³	1.5~2.5m³	2.5~5.0m³	Level (m)	Vertical (m)
Pulverized Coal	0.5	Delivery Volume (t/h)	0.5~1.8	1.5~5.5	5.0~9.0	8.0~18.0	100	20
Fly Ash	0.75		0.9~2.8	2.5~8.5	7.0~14.0	12.0~27.0	100	20
Limestone Powder/Mineral Powder	0.8		1.0~3.0	3.0~9.0	8.0~15.0	12.0~28.0	100	20
Cement/Raw Meal	1.0		1.2~3.5	3.5~11.5	10.0~18.0	16.0~36.0	100	20
Silicon Powder	1.2		1.5~4.0	4.5~13.5	12.0~20.0	19.0~43.0	100	20

Customizable Dense Phase Pneumatic Conveying Silo Pump - Powder Conveying System 1

Why Choose Our System?

1. Unmatched Reliability

• Patented pressure vessel design – 20% longer service life than competitors

• Auto pressure control – maintains steady flow without pulsation

2. Smart Operation

• PLC + touchscreen control – preset recipes for different materials

• Remote monitoring – real-time tracking via mobile/PC

3. ASEAN Market Focus

• CE & ATEX certified – meets strictest regional standards

Easy 4-Step Order Process:
1. Consultation – Share your material specs
2. Solution Design – We provide drawing layout & quote
3. Factory Acceptance Test – Verify performance
4. Installation Support – Onsite or remote guidance

Field Service
Installation and commissioning: Dispatch engineers to the customer's site to guide installation and commissioning, ensuring that the equipment meets the process requirements.
Regular maintenance: Provide preventive maintenance (such as valve seal inspection, pipeline wear assessment, control system calibration).
Emergency maintenance: Quickly respond to sudden malfunctions (such as pipe blockages, leaks, control system failures) and reduce downtime.
